CRAMAR Machining, LLC Equipment List & Capabilities



2022 VMC7SI

  • Table Size: 35.43″ x 19.69″
  • Travel (x, y, z): 30″ x 20″ x 20″
  • Footprint: 144″ x 112″
  • Horsepower: 41.5/20
  • SINUMERIK ONE CNC by Siemens
  • 24-Station Tool Magazine, Dual Arm Tool Changer
  • Advanced 12,000 RPM Spindle with Hybrid Ceramic Bearings
  • Linear Roller Bearing Slides on All Axes •Coolant Through Spindle (CTS)
  • Probe System Renishaw OMP40-2 3D
  • Renishaw OTS 3D touch-trigger tool setter

2024 VMC10SI

  • Table Size: 44.09″ x 19.69″
  • Travel (x, y, z): 40″ x 20″ x 20″
  • Footprint: 144″ x 112″
  • Horsepower: 41.5/20
  • SINUMERIK ONE CNC by Siemens
  • 24-Station Tool Magazine, Dual Arm Tool Changer •
  • Advanced 12,000 RPM Spindle with Hybrid Ceramic Bearings
  • Linear Roller Bearing Slides on All Axes
  • Coolant Through Spindle (CTS) •Probe System Renishaw OMP40-2 3D
  • Renishaw OTS 3D touch-trigger tool setter

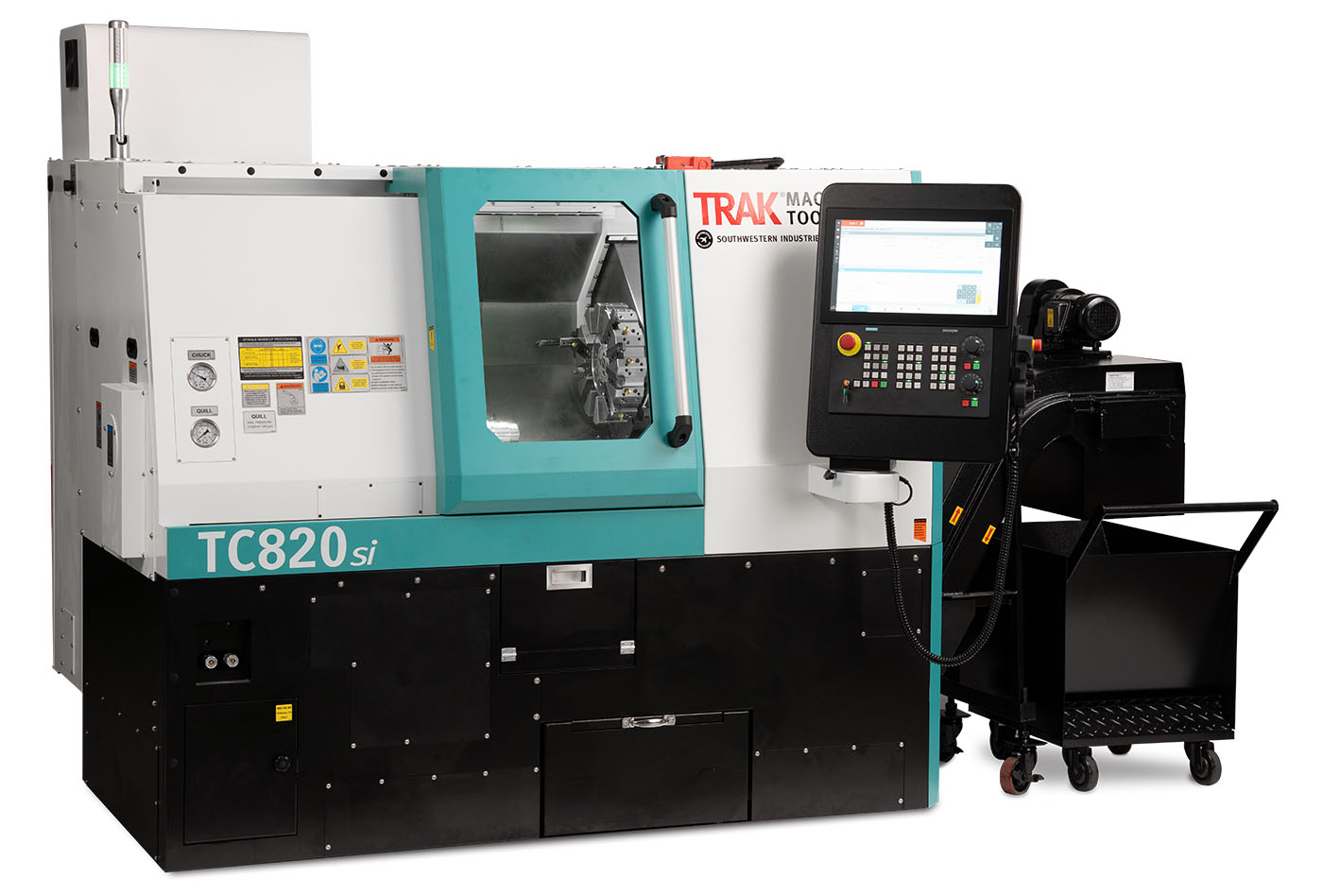

TRAK TC820si Turning Center

  • Siemens SINUMERIK ONE CNC
  • Maximum Turned Diameter 8.66” Maximum Turned Length 20.0”
  • Maximum Swing 15.75
  • 12 Station Bolt-On Turret
  • Coolant Through Turret
  • Manual Tailstock with Hydraulic Quill
  • 4,000 RPM Spindle with 2.56″ Capacity
  • Hydraulic 3-Jaw Chuck
  • Tool Setting Arm & Probe
  • Hardened Box Ways
  • Direct Drive on X and Z Axes
  • Precision Ground Ballscrews
  • Solid 8,000 lb Casting"

TRAK DPM3 SMX

  • 50″ x 10″ table size
  • 5″ X axis / 17″ Y axis / 25.81″ Z axis travel
  • 5 HP continuous spindle motor
  • 40 taper spindle
  • 3 Axis Machining

TESA-HITE 400 MAGNA

  • 16" (415 mm) measuring range
  • Electronics completely protected against liquids or dust penetration
  • Automatic diameter measurement using TESA's patented system for detecting culmination point
  • TESA magnetic measuring system (TESA Magna µ System Patented)
  • Compatible with TESA MICRO-HITE accessories, including measuring inserts and holder
  • SCS calibration certificate delivered with each instrument
  • Application range with standard insert holder 00760143: 22 in/570 mm
  • Application range with insert holder 00760057: 0 to 24 in /0 to 625 mm
  • Application range with insert holder S07001622: 31 in /795 mm - Max. perm. Error: < 8 µm / < 0.0003 in –
  • Repeatability: 2s=
  • Resolution: .0001 / .0002 / .001 in or 0.001 / 0.005 / 0.01 mm
